Colour Blending System

Colour Blanding System

Universaltix, Tixe’s colour blending system

UniversalTix colour blending system by Tixe, capable of faithfully reproducing any shade of its products. There are many product families, both water and solvent based, inside the system.

MANUAL COLOUR MIXING SYSTEM

  • Up to 20 canister
  • Canister Volume 2L
  • Mixing 1 cycle 10 minutes long every 6 hours in automatic mode
  • Pushbutton for manual mixing for 10 minutes each time it is pressed
  • Adjustable surface for the containers made of stainless steel
  • Optional: drip catcher, base, timer
  • Possible customization

ITALTINTO DISPENCER i250N / i250C

  • Small footprint
  • Rotating canister array for easier front colorant refilling
  • Single motor controlling entire dispensing system
  • No tubing system
  • Low maintenance
  • Low cost of operation and ownership

Dispensing mode:

  • i250N Simultaneous (up to six colorants)
  • i250C Simultaneous (up to six colorants)

Accuracy: down to 1/384 fl. oz. (0.077 ml)
Dispensing speed: 1.1 Ltr / min
Number of canisters: up to 16 (i250C : 12)
Canister capacity: 3 ltr
Pump: stainless steel 2 fl. oz (60ml)
Colorant stirring: automatic
Can sensor: standard
Target Finder: laser Light
Can handling: manual can shelf
Automatic Drop Stop: standard
Maximum can dimensions: 380x450x410mm / 15.0×17.7×16.1 in (WxDxH)
Compatibility: water Based Colorants
Power supply: single Phase 110-120 V / 220-240 V

Machine net weight:

  • i250N: 170 kg (374.7 lb)
  • i250C: 160 kg (352.7 lb)

Maximum machine size: 792x810x1430mm (WxDxH)
Shipping size: 1100W x 900D x 1717H mm
Software: ITALTINTO PRO.SCAN
Safety: CE compliance and cMETus Certified
(E114143-Standards UL1450 and CAN/CSA-C22.2 No. 68-09)

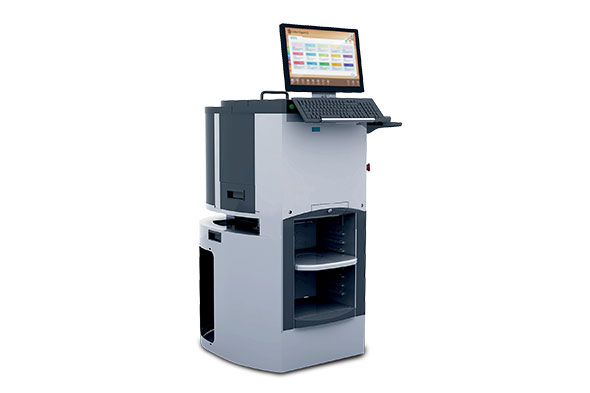

A4 - AUTOMATIC COLOUR MIXING SYSTEM

  • Patented double pump double nozzle achieves 0.015ml minimum shot
  • High efficiency: up to 300 ml/min
  • Zero nozzle dryness/ blockage
  • Simple to maintain
  • Colorant saving
  • Stable accuracy
  • Pre-installed software
  • Calibration-free Piston Pump
  • Ideal machine for sample paint promotion

No. of canister: up to 20
Canister size: 2.3L
Flow rate: 900ml / min
Pump capacity: 100ml
Stirring speed: 20 rpm
Minimum shot: 0,015 ml
Dimensions: 707x848x1270mm
Net weight: 145 Kg
Power: up to 100 Watts

COLORING PASTES

FOR PRODUCTS FOR INDOOR USE

paste coloranti / coloring pastes Cod.
BIANCO XUW 740.901
GIALLO UC 740.902
GIALLO UY 740.903
GIALLO UH 740.904
GIALLO OSSIDO XUY 740.905
ARANCIO UO 740.906
ARANCIO OSSIDO XUO 740.907
ROSSO UR 740.908
ROSSO OSSIDO XUR 740.909
MAGENTA UP 740.910
VIOLETTO UV 740.911
VERDE UG 740.912
VERDE XUG 740.913
ROSSO UF 740.914
BLU UB 740.915
NERO UN 740.916

FOR PRODUCTS FOR OUTDOOR USE

paste coloranti / coloring pastes Cod.
GIALLO XUL 740.917
ROSSO XUD 740.918
BLU OSSIDO XUB 740.919
NERO OSSIDO XUN 740.920
